New Doublo

The World’s first synergy system of MFU & RF

World-famous two technologies are in one device:

  • New Doublo is the world’s first synergy system of MFU, SD (MFU+RF) technology
  • It is a state-of-the-art ultrasonic tool wisely combined with RF for enhancement of the results.
  • New Doublo has multiple handpieces of two different technologies that strategically allows to customize treatments as per individual needs and provide a complete face lifting and tightening look.
  • MFU with SD (MFU+RF) Synergy Dotting technology enhances further clinical results and offers greater potency in lifting, tightening and contouring.
Double Effect & Safety:

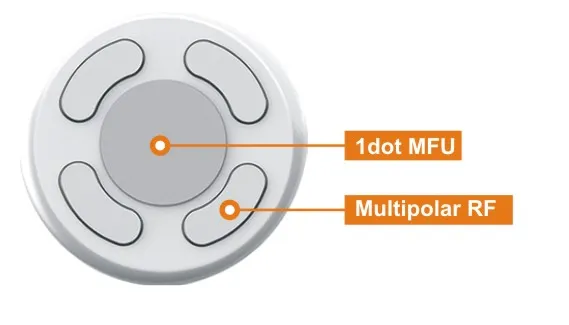

1. SD (Synergy Dotting) Technology:

● Innovative Synergistic Effect of Micro Focused Ultrasound & Radio Frequency

● Amazing therapeutic effect through the two famous tightening & lifting treatment of MFU &

● Four interchangeable cartridges for face & body target focused depth at each layer of the skin.

qswitch
different-modes

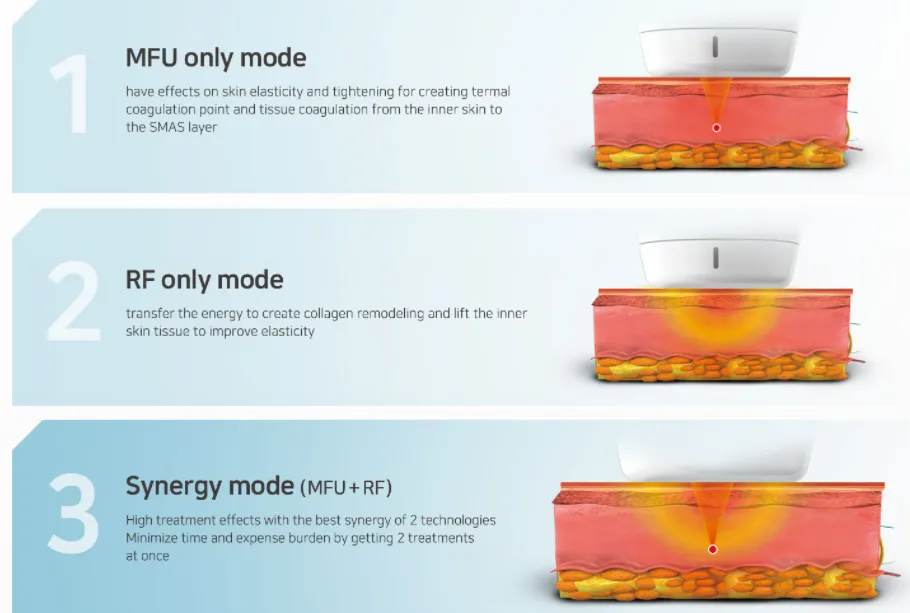

a. Different Modes:

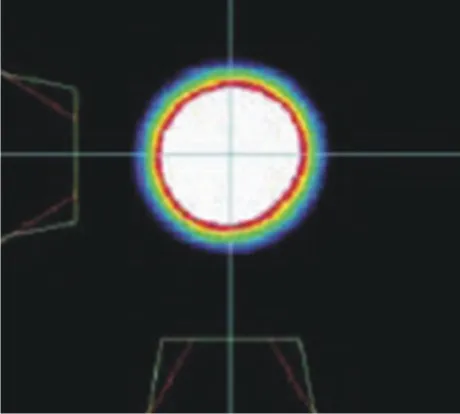

beam-profile

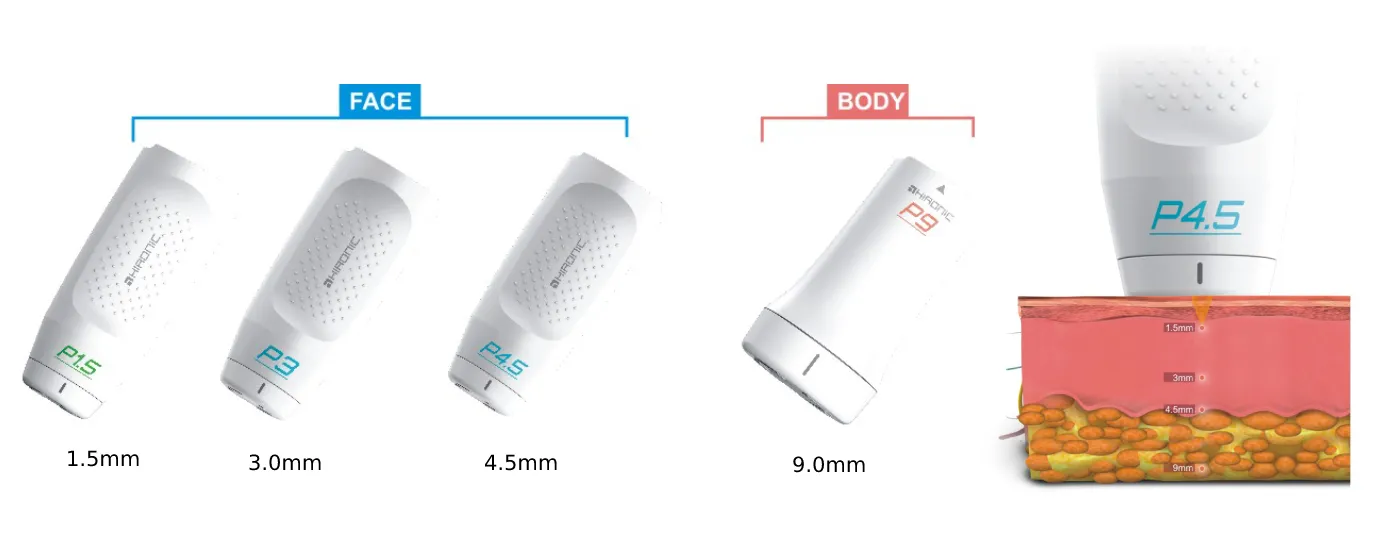

b. Various Types of Cartridges:

2. MFU (Micro Focused Ultrasound):

a. Different cartridges for different depths

various-types-of-cartridges

Customized treatment depending on the skin type, treatment area and depth.

3. Treatment Results:
elastin activation

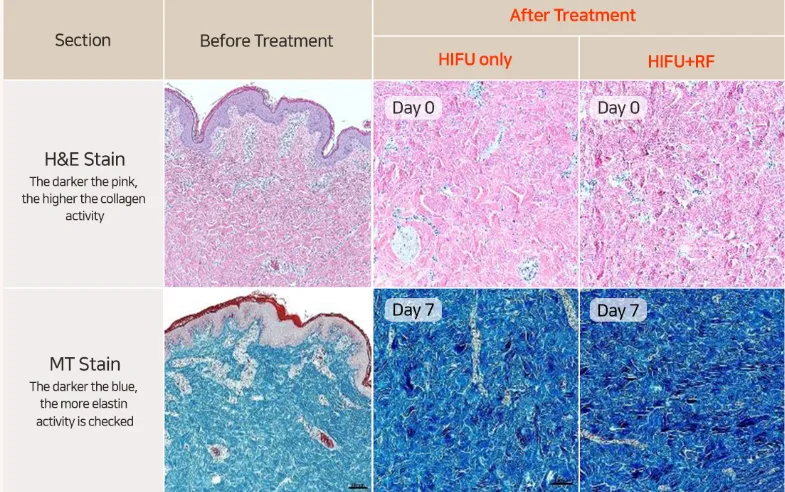

a. Increases collagen & elastin activation by SD (MFU+RF) compared to HIFU alone:

transfer-the-heat

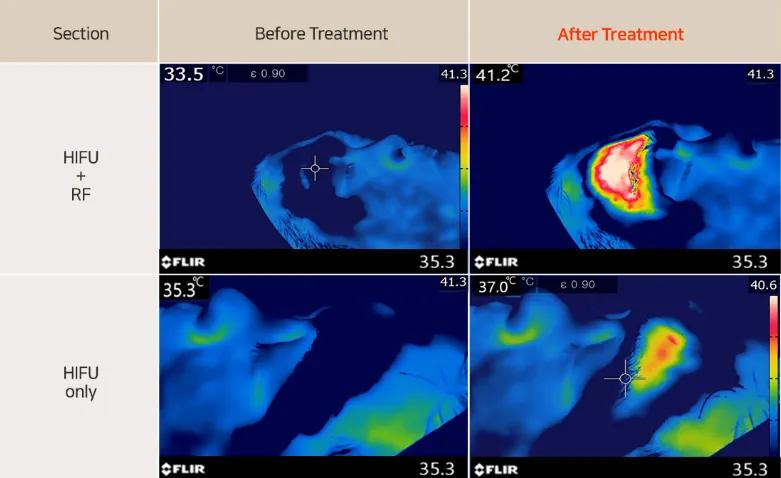

b. Transfer the higher heat in wider area:

various-types-of-cartridges

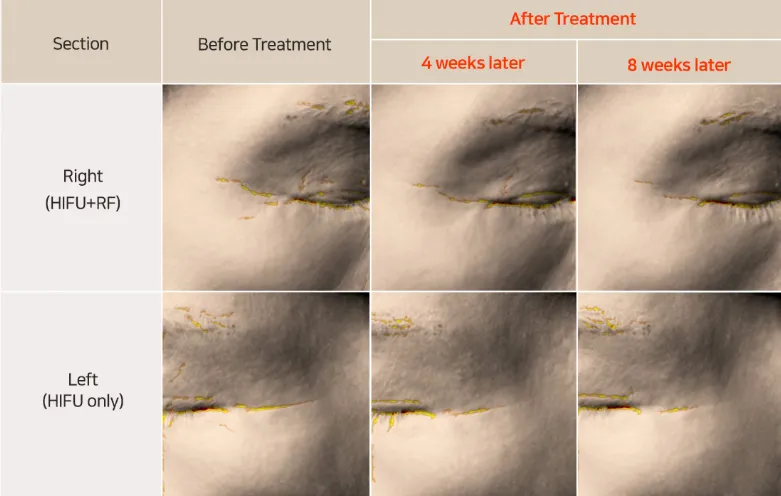

c. HIFU+RF combined shows 142.9% improvement in wrinkle compared to HIFU

improvement-in-smile-lines

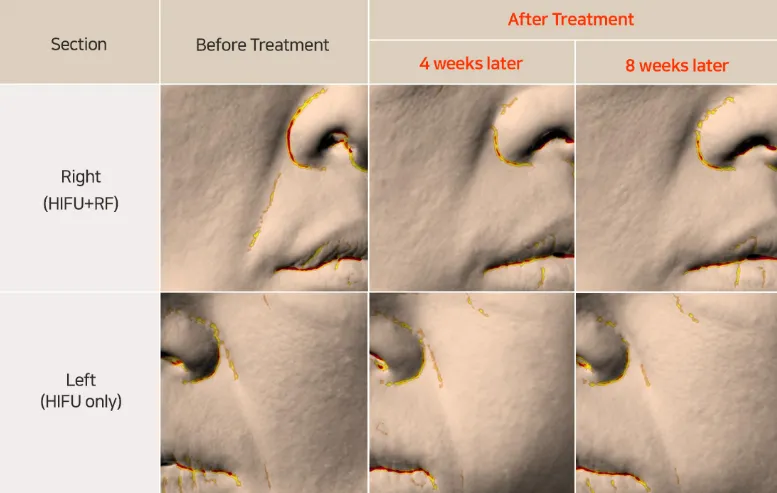

d. HIFU+RF combined shows 131.3% improvement in smile lines

4. Patented Safety Profile:

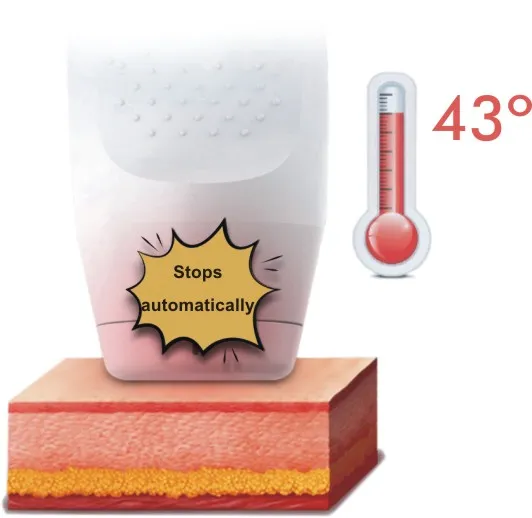

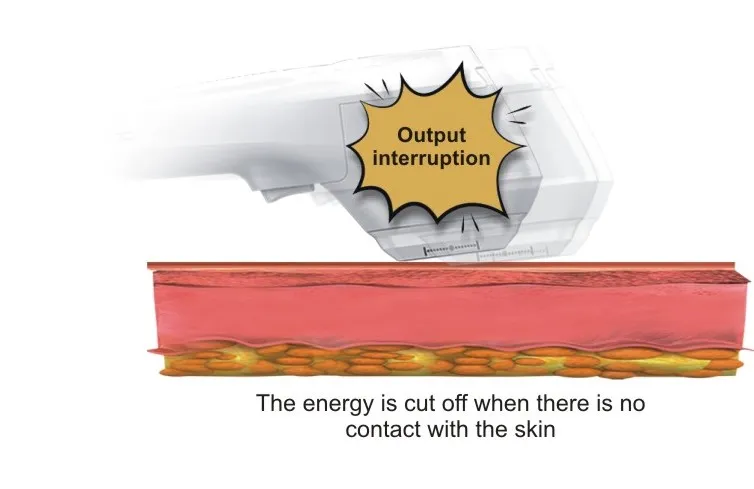

a. FL contact sensor: The cartridge will stop operating to prevent damage when it is not contacted with the skin.

b. FL movement sensor: The movement sensor prevents consecutive shots in one place

c. SD gyro sensor: SD gyro sensor to prevent overlapping on the same spot.

output-interruption
various-types-of-cartridges
Specifications
1
MFU cartridges		 Depth {Frequency, Power}
1.5mm {7Mhz, 0.1J~0.5J}
2.0mm {7Mhz, 0.1J~1.0J}
3.0mm {7Mhz, 0.1J~1.0J}
4.5mm {4Mhz, 0.1J~1.5J}
6.0mm {2Mhz, 0.1J~3.0J}
9.0mm {2Mhz, 0.1J~3.0J}
2
SD (MFU+RF) Cartridges		 Depth {Frequency, Power}
1.5mm {7Mhz, 0.1J~0.5J}
3.0mm {7Mhz, 0.1J~1.0J}
4.5mm {4Mhz, 0.1J~1.5J}
9.0mm {2Mhz, 0.1J~3.0J}
RF Frequency
2Mhz / Level 1~10
3
Spacing		 1.0~5.0mm
4
Length		 5.0~25mm
5
Convenience System		 Sub LCD applied H/P
Quattro H/P
TIS {Treatment Information System}
RMS {Remote Maintenance System}
Auto mode & Manual mode
Automatic H/P sensor
Easy & Intuitive GUI
6
Power Consumption		 AC100~240V, 50/60Hz
7
Dimension		 700*605*1315 (W*L*H)
8
Weight		 43.5Kg
