KN-8000A LLLT
KN-8000A LLLT
- LLLT low energy soft laser irradiation technology, safe and reliable
- 424 laser diodes equipped in 5 panels for maximum coverage to penetrate into the scalp
- 650 nm wavelengths offer 4.5mW/cm2 energy helps to increase blood circulation and stimulate cell division within the hair follicle
- Dot matrix arrangement of laser light source, more evenly distributed radiating spot to promote rapid hair growth
- Low level laser therapy device designed according to head's characters to treat every area of scalp

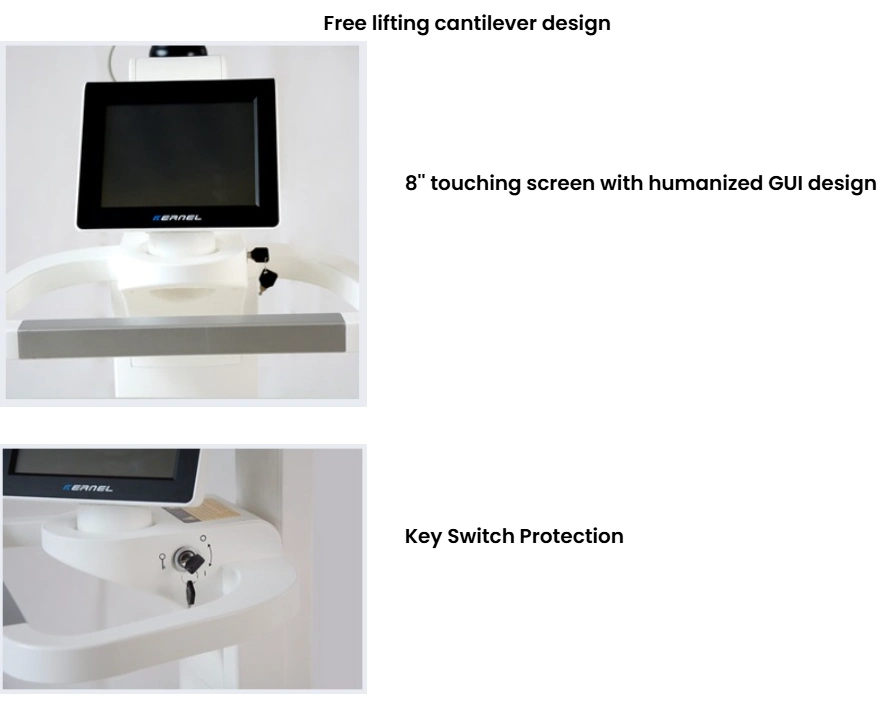

- Free cantilever design makes the light source stayed in any angle position

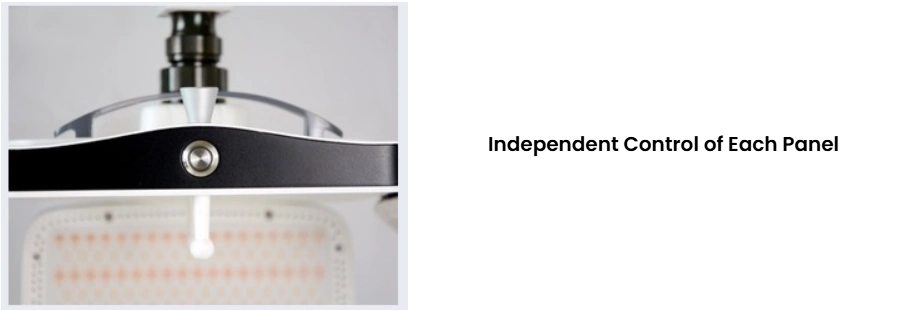

- Each panel can be controlled separately according to different treatment area
- Continuous Irradiation Mode or Pulse Mode is an optional according to the requirement of treatment

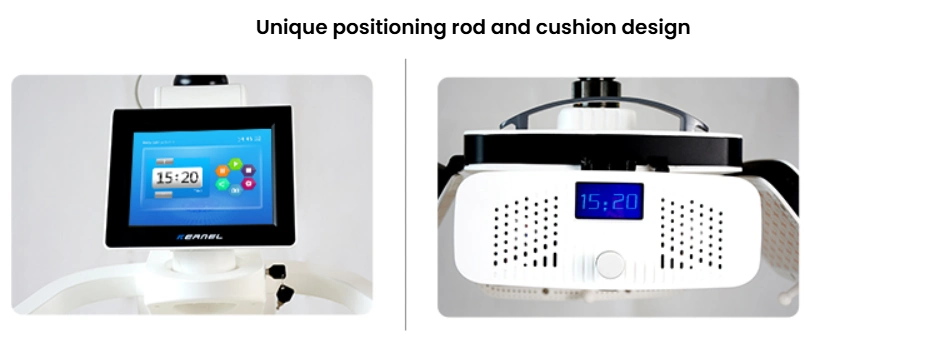

- The treatment head has auxiliary display function know the time of treatment

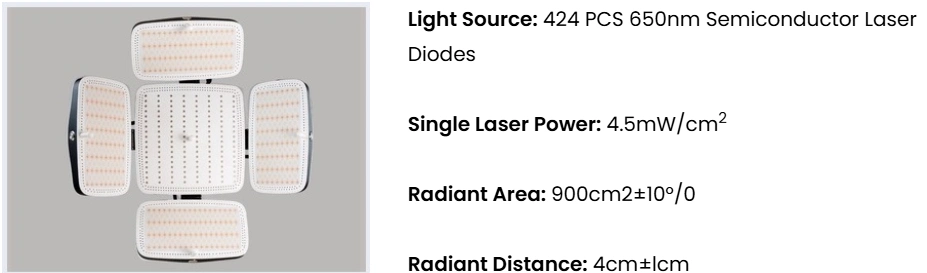

Single Laser Power: 4.5mW/cm2
Radiant Area: 900cm2±10°/0
Radiant Distance: 4cm±lcm

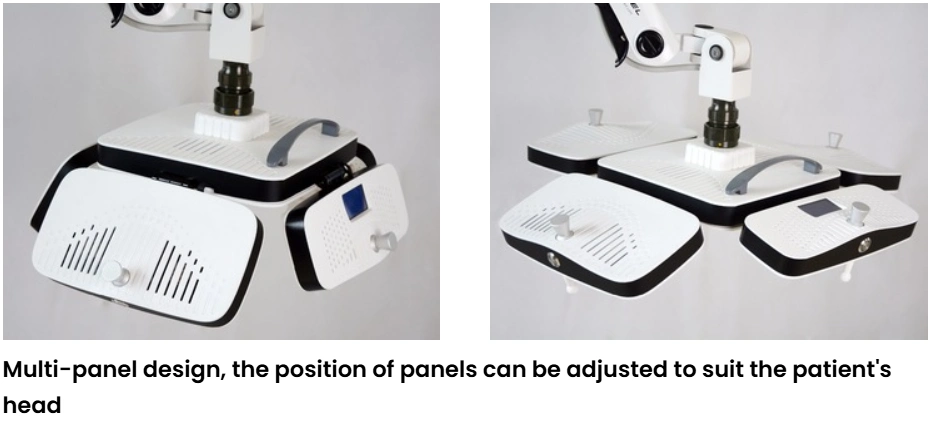

Multi-panel design, the position of panels can be adjusted to suit the patient's head
|
Item |
Parameter |
|
Intended use |
Seborrheic alopecia, alopecia areata and other hair loss |
|
Suitable place |
Hospital dermatological department and medical cosmetology department |
|
Power supply |
AC 100-240V, 50/60Hz±2% |
|
Structure type |
Trolley |
|
Display mode |
8’’ rotary touch screen |
|
Irradiation mode |
Continuous irradiation, pulse irradiation |
|
Radiant area |
900cm2±10% |
|
Radiant distance |
4cm±1cm |
|
Light source type |
650nm Semiconductor Laser Diodes |
|
Laser output wavelength |
Laser LD 650nm±10nm |
|
Single laser power |
4.5mW/cm2 |
|
Quantity of laser diodes |
424pcs |
|
Output light power |
≤2098.8mW |
|
Light power density |
2.332mW/cm2 |
|
Work time range |
0min-60min, can be set |
|
Pulse frequency |
1Hz-10Hz, 10 gears can be chosen |
|
Light source rotation angle |
180° |
|
Light source lifting distance |
99-145cm |
|
Cantilever length |
70cm |
|
Main frame size (L*W*H) |
570mm*620mm*1245mm |
|
Expended light source size (L*W*H) |
488mm*453mm*65mm |
|
Retracted light source inside size (L*W*H) |
225mm*225mm*120mm |
|
Package size (L*W*H) |
1030mm*660mm*540mm |
|
Gross weight |
38kg |
